Zetron PTM600-T Online Syngas Analyzer for Continuous Industrial Gas Monitoring

Name: Zetron PTM600T Online Syngas Analyzer for Continuous Industrial Gas Monitoring
Brand: Zetron
Price: 11500 USD

Zetron PTM600-T Online Syngas Analyzer for Continuous Industrial Gas Monitoring Manufactures

Brand Name : Zetron

Model Number : PTM600-T

Certification : CE, ISO13485, ISO9001

Place of Origin : CHINA

MOQ : 1

Price : USD 11500 ~40000 PER PCS

Supply Ability : 1000 set/month

Delivery Time : 1-10 work days

Packaging Details : paper case

Protection level : IP66

weight : 4.5kg

Product Size : 340x330x150mm(L×W×H)

Contact Now

Zetron PTM600-T Online Syngas Analyzer for Continuous Industrial Gas Monitoring

Our Syngas Analyzers PTM600-T is high-stability infrared detector for the simultaneous measurement of CO, CO2, CH4 and C2H2, CnHm. These gases are suitable for challenging applications such as syngas and gasification atmospheres. In addition, analyzers may use a compensated thermal conductivity cell for H2. Electrochemical O2 sensors may also measure percent levels of oxygen in the sample gas stream.

Suitable for continuous industrial syngas analysis and gasification analysis.

Zetron PTM600-T Online Syngas Analyzer for Continuous Industrial Gas Monitoring

Modular sensors design, easy for maintenance.
Replacement to gas chromatography, mass spectrometry.
Auto temperature compensation to guarantee precision.
Precision filters to remove moisture and dust in sample gas for analyzer protection.
7 inch colorful LCD screen display, large screen for all information display.
Touch screen operation, easy to operate.
4-20 mA current ring output, optional.
RS485 or RS232 communication, with 4-20mA analog output
Use 483mm (19 ″) embedded chassis and can be installed in 483mm (19 ″) standard cabinet

Technology	CO/CH4/C2H2: High resolution NDIR H2: TCD O2: ECD
Range	O2: 0-25%VOL CO: 0-10%VOL H2: 0-100%VOL CH4: 0-10%VOL C2H2: 0-10000ppm (Note: measurement range can be customized.)
Resolution	CH4, H2, CO, O2: 0.01%, C2H2: 1ppm
Precision	CO2, CH4: <2%FS H2S, O2, CO, H2: <3%FS
Responding time	15s (infrared)
Repeatability	0.5%
Inlet gas flow	0.7-1.2 L/min
Inlet gas pressure	2kPa-50kPa
Sampling gas condition	no dust, no water, no tar
Response time(T90)	<10s (NDIR)
Display	High-resolution colored 7-inch
Communication interace	RS485/RS-232, 4-20mA
Power supply	100-240VAC
Work temperature	-10—40°C, -40 -70°C customized
Relative humidity	<95% non condensing

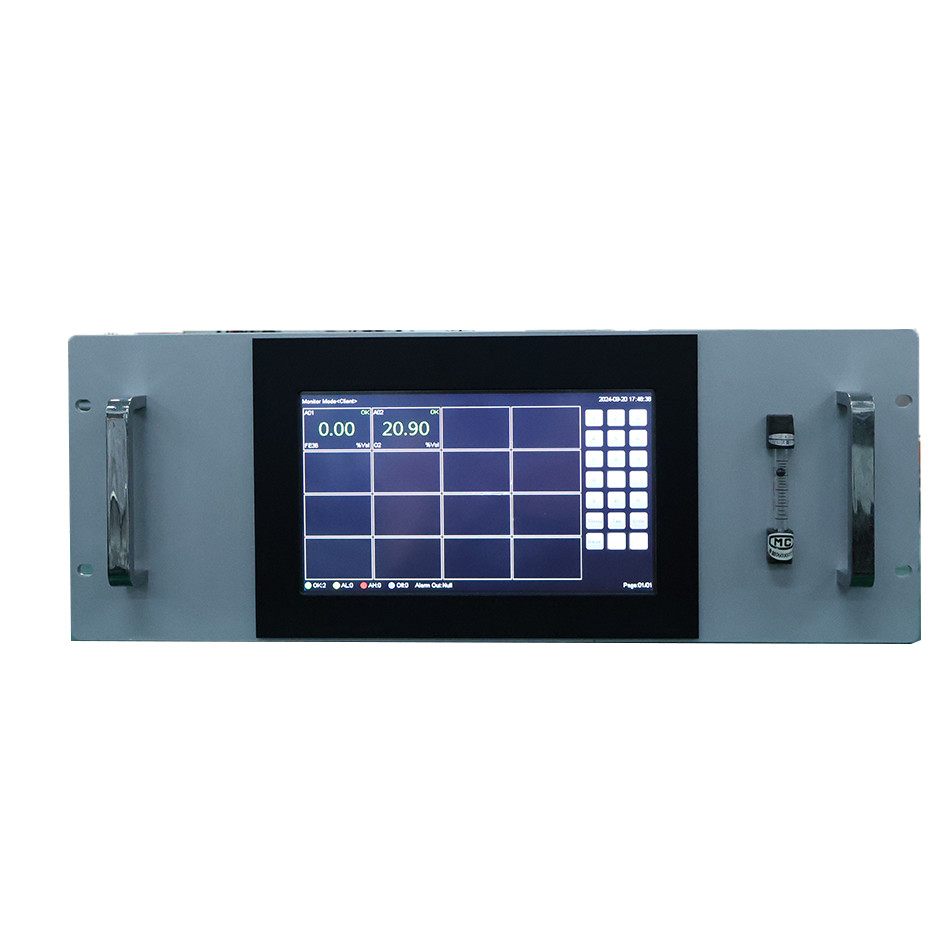

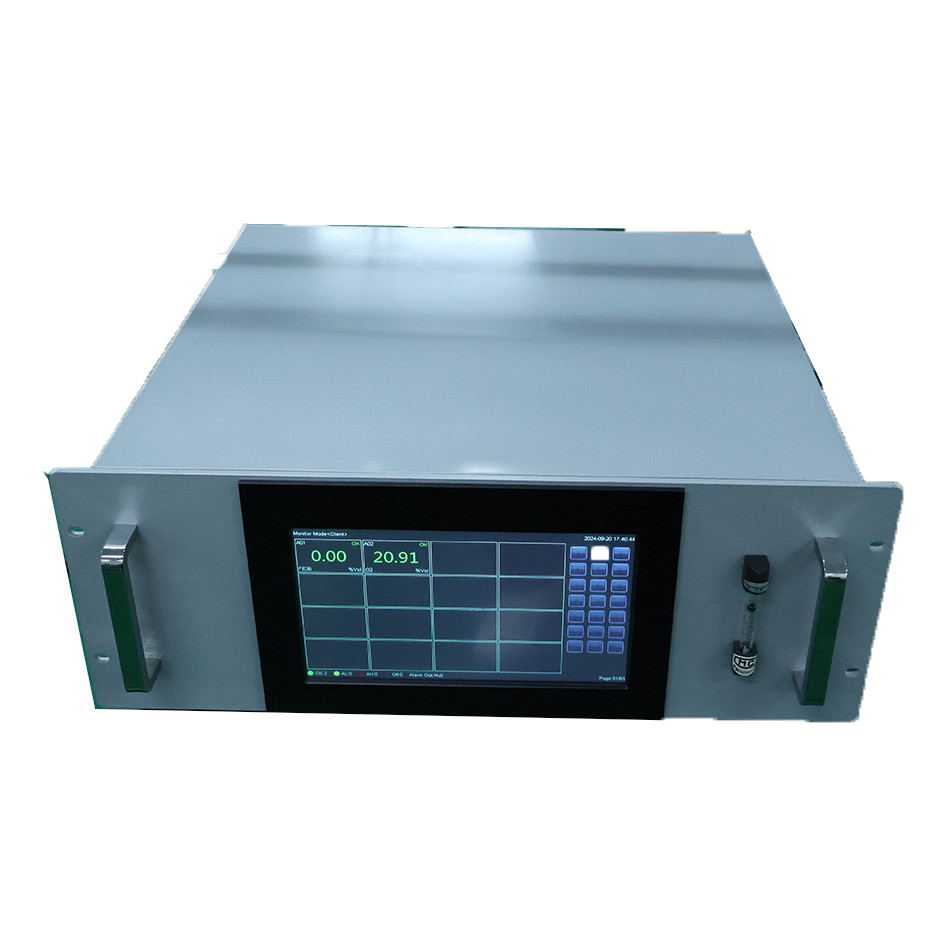

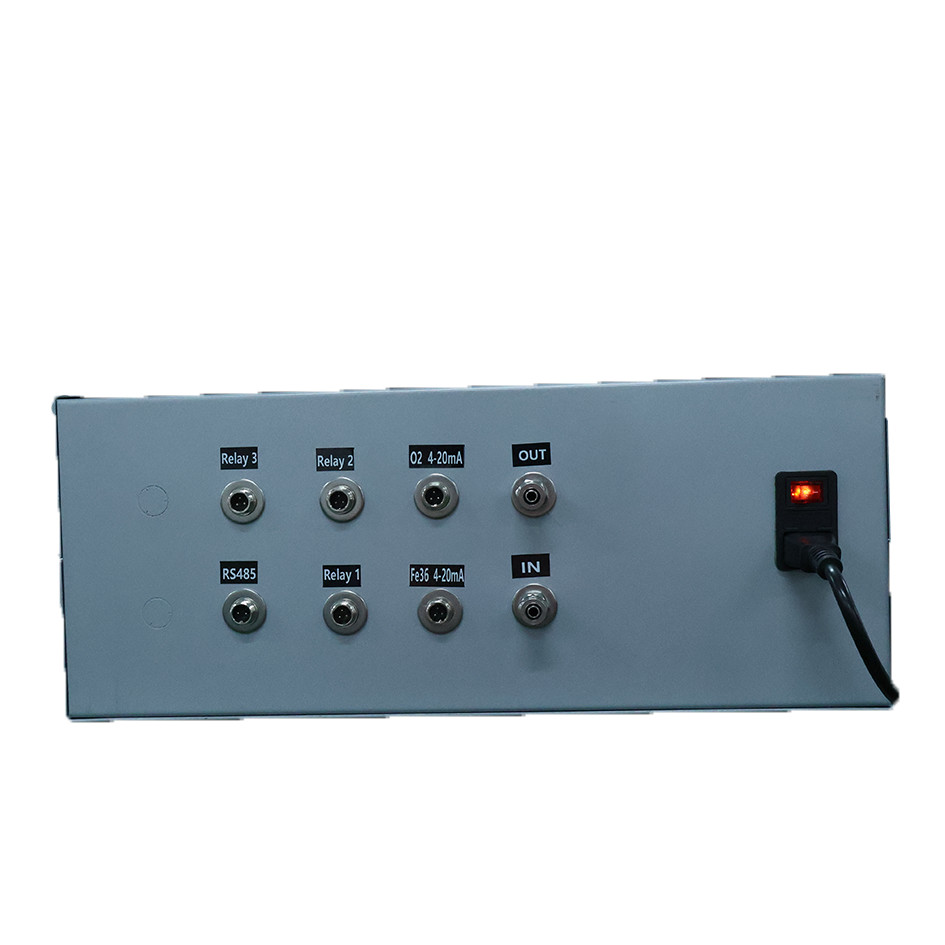

Zetron PTM600-T Online Syngas Analyzer for Continuous Industrial Gas Monitoring Images
