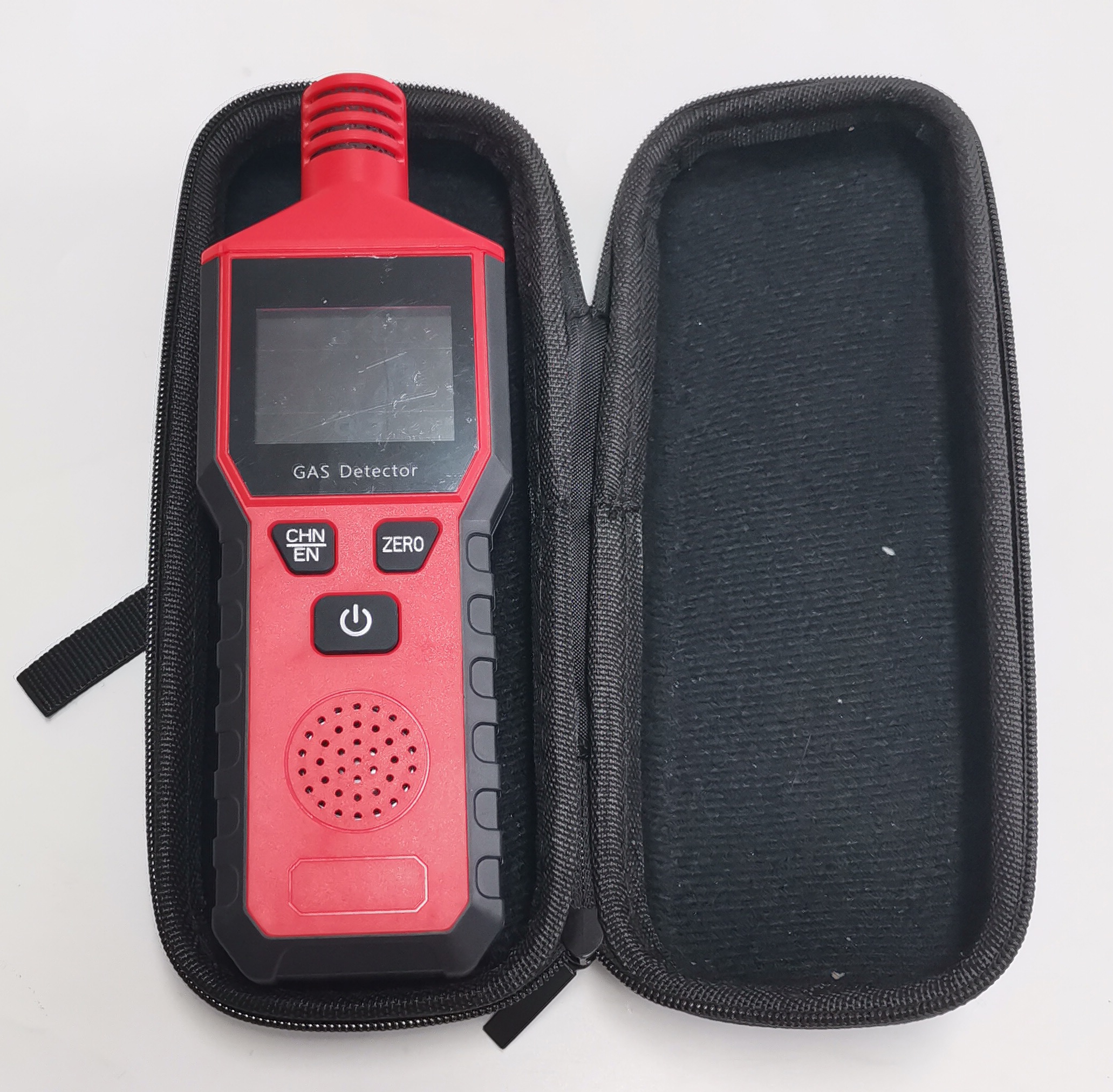

KN802 Handheld Combustible Gas Detector
OVERVIEW
The handheld combustible gas detector can detect gas leaks in limited spaces and can display in PPM units.After warming up the probe, when encountering combustible compounds in the form of mist and gas, the signal changes and the LCD displays the current concentration to remind the user of the presence of combustible gas leakage, so that the user can take effective measures in time to eliminate safety hazards.
FEATURES
♦ High sensitivity; Quick response
♦ Display the concentration value through LCD for gas leakage alarm
♦ High sensitivity sensors can test small leak sources
♦ High definition LCD display and broadcast in Chinese and English
♦ Real-time temperature and humidity display
♦ Low voltage notification
♦ Intelligent zero calibration, vibrating notification
APPLICATION
KN802 is widely used in environmental detection, gas pipelines, propane filling stations, cabin oil leakage, waste, and fuel leakage detection fields.
SPECIFICATION
| Sensitivity | 50PPM |
| Sensor type | Low power semiconductor |
| Wann-up time | Countdown 60 seconds (25 °C, in 60% Rh environment) |
| Response time | 2〜5 seconds |
| Service cycle | Continuous operation |
| Detector length | 25mm |
| Working voltage | 4.5V |
| Battery life | Continuous use for 4 hours (slight changes depending on working condition) |
| Low voltage reminder | LCD icon display and voice reminder |
| Power supply mode | AAAX3 (alkaline dry cell) |
| Working current | lOuAAbout 300mA/lower than lOuA when standby |
| Fault display | HHHH |
| Ambient temperature | 0~50°C |
| Product size | 165*55*32mm |
| Weight | About 100g |
Product Tags:
|
|
KN802 Low Power Semiconductor Combustible Gas Detector For Fuel Leakage Detection Fields Images
|
